Home > Tuners > MR7083
McIntosh MR7083
AM/FM Stereo Tuner Original List Price: 1750.00 EA

Grade: B1 B1: 599.00 EA
Physical: Some light scratches - Excellent Condition
Electrical: Meets or exceeds original specs, all functions operate
Comments:
Call to order

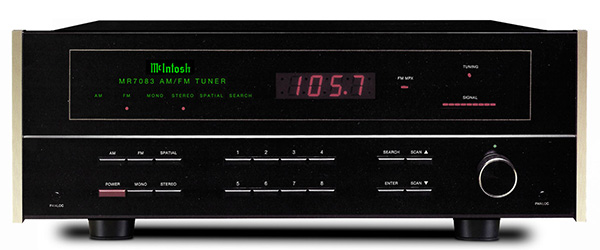

McIntosh MR7083
File Photo for Representation of item. May not be the actual item offered for sale.


SPECIFICATIONS
PERFORMANCE LIMITS
FM SECTION

USABLE SENSITIVITY
    11.25dBF which is 1.0 microvolts across
75 ohms
QUIETING SENSITIVITY
    Mono: 15dBF which is 1.6 microvolts
across 75 ohms
    Stereo: 37dBF which is 20 microvolts
across 75 ohms
SIGNAL TO NOISE RATIO
    Mono: 80dB
    Stereo: 75dB
FREQUENCY RESPONSE
    Mono: +0, -1dB from 20Hz to
15,000Hz
    Stereo: +0, -1dB from 20Hz to
15,000Hz
HARMONIC DISTORTION
    Mono: 0.08% at 100Hz
        0.08% at 1000Hz
        0.12% at 10,000Hz
    Stereo 0.08% at 100Hz
        0.08% at 1000Hz
        0.12% at 10,000Hz
INTERMODULATION DISTORTION
    Mono: 0.08%
    Stereo: 0.12%
CAPTURE RATIO
    1.5dB
ALTERNATE CHANNEL SELECTIVITY
    70dB
SPURIOUS RESPONSE
    100dB
IMAGE RESPONSE
    80dB
STEREO SEPARATION
    50dB
AM SECTION

SENSATIVITY
    AM 20 microvolt external antenna in-
put (50 ohm source input)
SIGNAL TO NOISE RATIO
    50dB at 30% modulation
    60db at 100% modulation
HARMONIC DISTORTION
    0.5% maximum at 30% modulation
FREQUENCY RESPONSE
    50Hz to 6000Hz NRSC
ADJACENT CHANNEL SELECTIVITY
    45dB minimum IHF
IMAGE REJECTION
    78dB minimum
AUDIO OUTPUT, AM and FM
    Fixed: 1.2 volt RMS at 100%
modulation
    Variable: 1.2 millivolts to 1.2 volts at
100% modulation
POWER REQUIREMENTS
    120 volts 50/60Hz, 10 watts

MECHANICAL

SIZE
    Front Panel: (wide Model), 17-1/2
inches (44.5cm) wide, (Regular Model),
16-1/8 inches (41cm) wide, by 5-3/8
(13.7cm) high. Depth behind the mount-
ing surface including clearance for
connectors, 14 inches (33cm). Knob
clearance required in front of the
mounting panel is 1-1/4 inches (3.2cm)
WEIGHT
    15-1/2 pounds (7Kg) net, 27-1/2 pounds
(12.5Kg) in shipping carton.

Shipping weight: 29 lbs.
