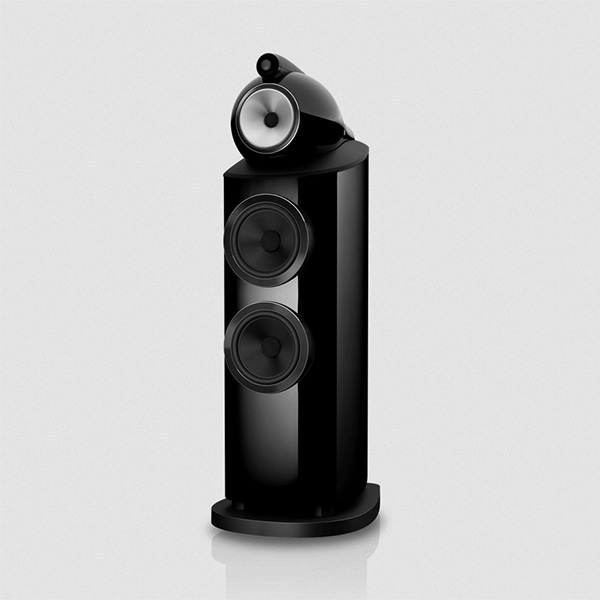

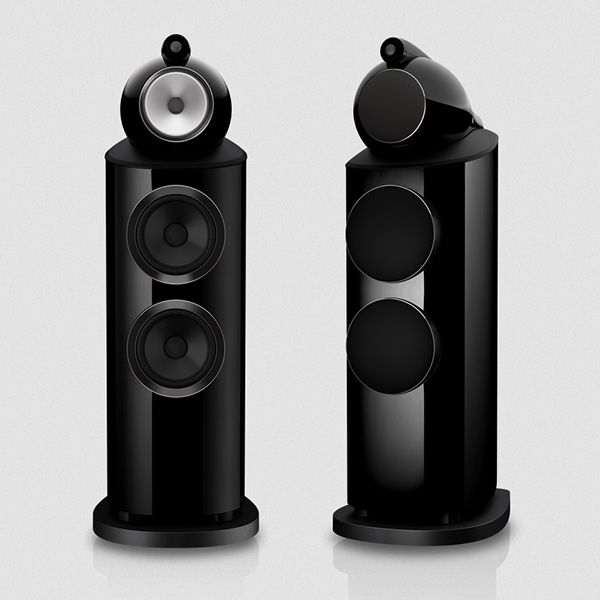

802 D5 Reference Tower Loudspeaker

Bowers & Wilkins 802 D5

REFERENCE TOWER LOUDSPEAKER

The 802 D5 is engineered for reference-grade stereo listening and breathtaking home theater experiences.

Delivering much of the quality of the flagship 801 D5 in a more affordable design, 802 D5 uses the same Diamond dome tweeter housed in a Solid Body Tweeter-on-Top, as well as the decoupled Turbine Head for its Continuum cone FST™ midrange driver. Dual 8-inch bass drivers are rigidly mounted in its reverse-wrap cabinet, ensuring controlled and precise low-frequency performance. Available in Stealth Black, Warm White, Light Walnut, or Dark Walnut, with matching Leather by Connolly trim, the 802 D5 provides you with sound you wouldn’t believe possible.

Optimised for pure performance

Every model in the new 800 Series Diamond range benefits from enhanced technology. An upgraded Matrix™ design reduces resonance and creates a more believable soundstage, while aluminium Space Frame Bracing and an all-new aluminium top section within the cabinet help deliver an even more spacious and immersive sound.

ULTIMATE DRIVE UNIT TECHNOLOGY

Pairing B&W's most advanced and innovative drive unit technology, the 802 D5 delivers their purest sound ever. The Diamond dome tweeter pushes break-up frequency to 70kHz, delivering exceptional clarity, precision and openness, and the Continuum™ cone delivers voices and instruments with lifelike detail.

CRAFTED TO BE BETTER BY DESIGN

The 800 Series Diamond looks this way for a reason. Its shape is dictated by the science of sound. The cabinets are formed from a single continuous curve, locked in place by a solid aluminium spine, so cabinet reflections are reduced. Complemented by the Tweeter-on-Top and Turbine Head, musical performance is always as precise as possible.

SPECIFICATIONS

• TECHNICAL FEATURES

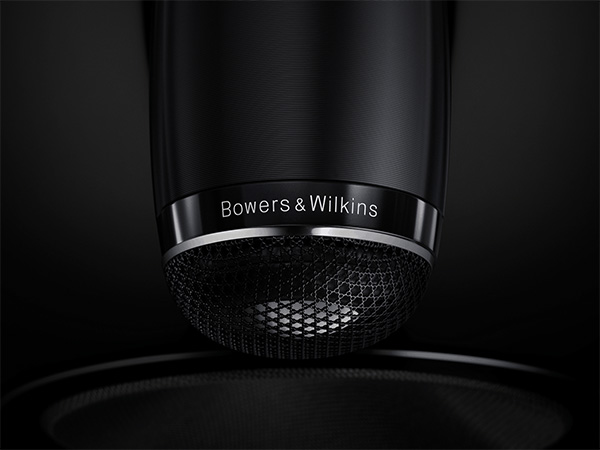

  Diamond dome tweeter

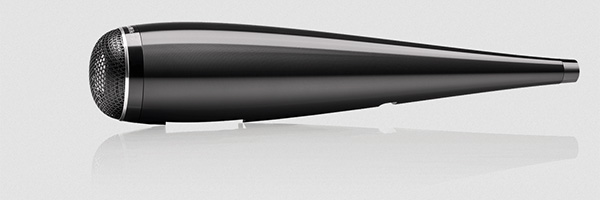

  Solid Body Tweeter-on-Top
  Continuum™ cone FST™ midrange
  Anti-Resonance plug
  Biomimetic Suspension
  Turbine Head
  Matrix™ enclosure
  Aerofoil™ bass cones Flowport™


• DRIVE UNITS
  1× ø25mm (1in) Diamond dome
  1× ø150mm (6.0in) Continuum™ midrange
  2× ø200mm (8.0in) Continuum™ Aerofoil™ bass


• FREQUENCY RANGE
  -6dB 14Hz – 35kHz


• FREQUENCY RESPONSE
  17Hz – 28kHz ±3dB (±3dB from reference axis)


• SENSITIVITY
  90dB (on axis at 2.83Vrms at 1m)


• HARMONIC DISTORTION
  2nd and 3rd harmonics (90dB,1m on axis)
  <1% 70Hz – 20kHz
  <0.3% 100Hz – 8kHz


• NOMINAL IMPEDANCE
  8Ω (minimum 3.3Ω)


• RECOMMENDED AMPLIFIER POWER
  50W – 500W into 8Ω on unclipped program


• DIMENSIONS
  Height: 48.0in (1218mm)
  including tweeter and plinth
  Width: 13.6in (345mm) cabinet only 14.1in (359mm) including plinth
  Depth: 16.2in (413mm) including grill and terminals
  23.2in (589mm) including plinth


• NET WEIGHT
  201.4lbs (91.4kg) each


• FINISHES
  Stealth Black
  Warm White
  Light Walnut
  Dark Walnut


• GRILL
  Black (Stealth Black and Dark Walnut)
  Gray (Warm White and Light Walnut)
