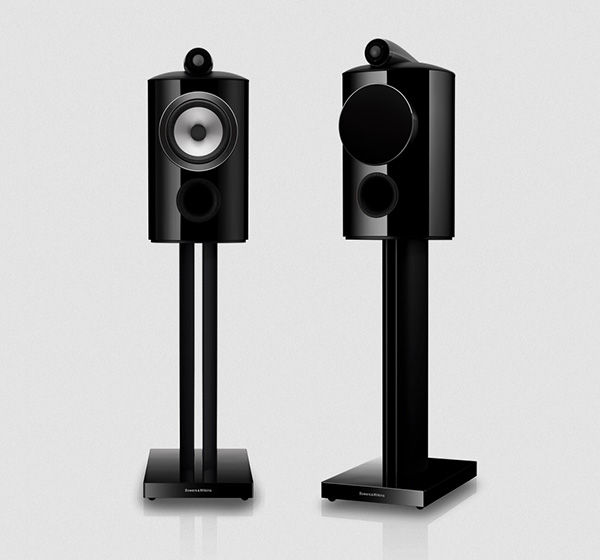

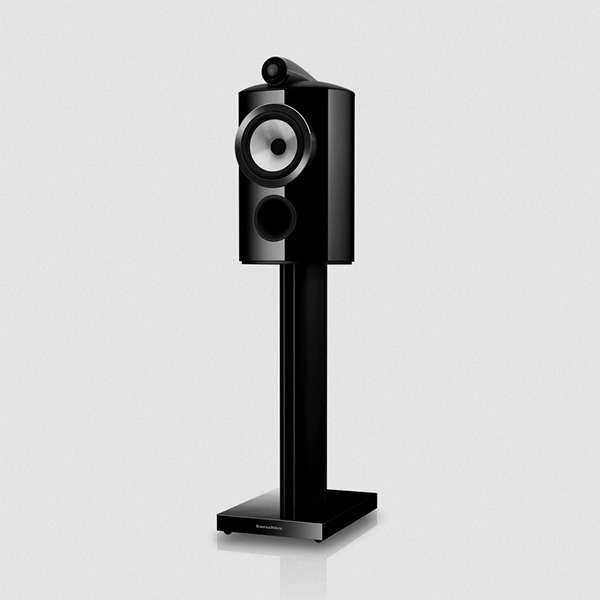

805 D5 Reference Stand-Mount Loudspeaker

Bowers & Wilkins 805 D5

REFERENCE STAND-MOUNT LOUDSPEAKER

The 805 D5 stand-mount loudspeaker is the most compact model in the 800 Series Diamond range. While it's best suited for smaller listening spaces, its large-scale performance greatly exceeds its modest stature.

Equipped with Bowers & Wilkins Diamond dome tweeter, Solid Body Tweeter-on-Top and Continuum mid-bass cone housed in a reverse wrap cabinet, 805 D5 sounds and performs best when securely atop its bespoke speaker stands. Available in Stealth Black, Warm White, Light Walnut, and Dark Walnut, with matching Leather by Connolly trim, the 805 D5 is proof positive that small can still be beautiful. * Stand(s) not included.

OPTIMIZED FOR PURE PERFPRMANCE

Every model in the new 800 Series Diamond range benefits from enhanced technology. An upgraded Matrix™ design reduces resonance and creates a more believable soundstage, while aluminium Space Frame Bracing and an all-new aluminium top section within the cabinet help deliver an even more spacious and immersive sound.

ULTIMATE DRIVE UNIT TECHNOLOGY

Pairing B&W's most advanced and innovative drive unit technology, the 805 D5 delivers their purest sound ever. The Diamond dome tweeter pushes break-up frequency to 70kHz, delivering exceptional clarity, precision and openness, and the Continuum™ cone delivers voices and instruments with lifelike detail.

CRAFTED TO BE BETTER BY DESIGN

The 800 Series Diamond looks this way for a reason. Its shape is dictated by the science of sound. The cabinets are formed from a single continuous curve, locked in place by a solid aluminium spine, so cabinet reflections are reduced. Complemented by the Tweeter-on-Top, musical performance is always as precise as possible.

SPECIFICATIONS

• TECHNICAL FEATURES
  Diamond dome tweeter

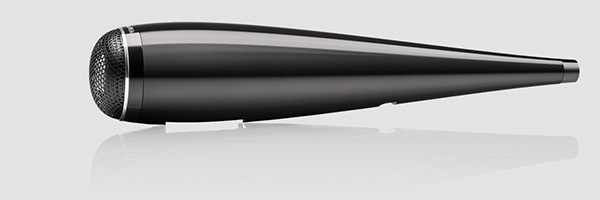

  Solid Body Tweeter-on-Top
  Continuum™ cone FST midrange
  Matrix™ enclosure
  Anti-Resonance plug
  Flowport™


• DRIVE UNITS
  1× ø25mm (1in) Diamond dome
  1× ø165mm (6.5in) Continuum™ cone


• FREQUENCY RANGE
  -6dB 34Hz – 35kHz


• FREQUENCY RESPONSE
  42Hz – 28kHz ±3dB (±3dB from reference axis)


• SENSITIVITY
  88dB (on axis at 2.83Vrms at 1m)


• HARMONIC DISTORTION
  2nd and 3rd harmonics (90dB,1m on axis)
  <1% 90Hz – 20kHz
  <0.3% 120Hz – 8kHz


• NOMINAL IMPEDANCE
  8Ω (minimum 4.6Ω)


• RECOMMENDED AMPLIFIER POWER
  50W – 120W into 8Ω on unclipped program


• DIMENSIONS
  Height: 17.3in (439mm) including tweeter
  Width: 9.5in (241mm) cabinet only
  Depth: 12.7in (322mm) cabinet only
  14.3in (363mm ) including grill and terminals


• NET WEIGHT
  36.0lbs (16.4kg) each


• FINISHES
  Stealth Black
  Warm White
  Light Walnut
  Dark Walnut


• GRILL
  Black (Stealth Black and Dark Walnut)
  Gray (Warm White and Light Walnut)


• ACCESSORIES
  FS-805 stand in Black or Titanium
