This massive amplifier proves just how much difference an amplifier can make in high quality music reproduction.
Its exceptional stability and low distortion along with its tremendous reserves of power, result in remarkably clean
performance. Transient response is superb. Built-in metered adjustments. Beautiful precision construction. For superior
stereo or monaural reproduction, Audio Classics offers the finest amplifier made today.




|

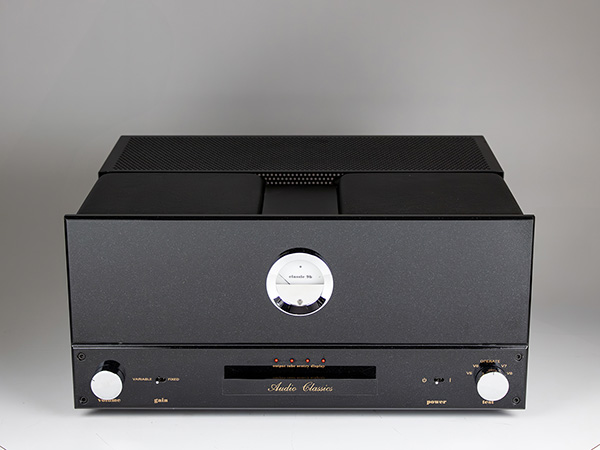

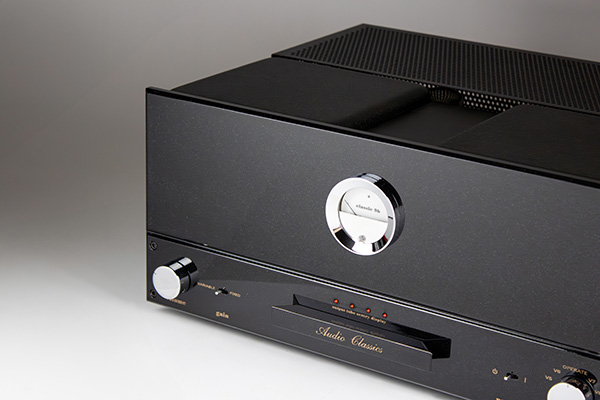

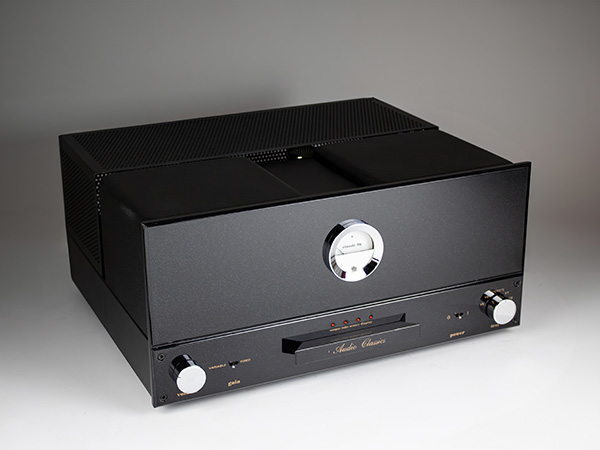

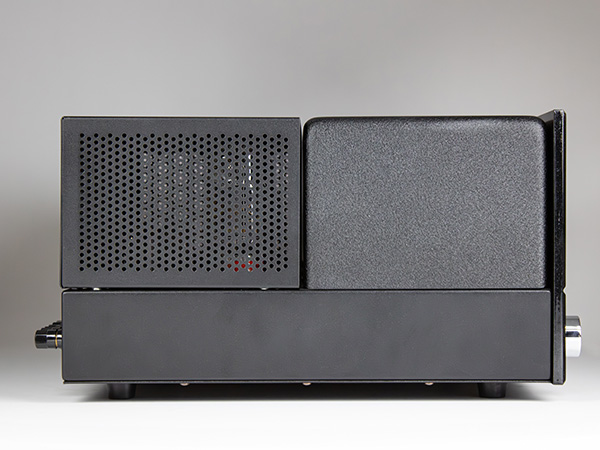

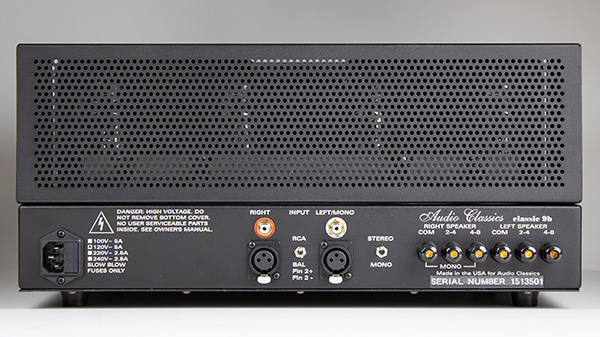

Audio Classics 9B
Stereo Power Amplifier
Stereo Operation:
50 WPC at 4 or 8 ohm load with EL34 tubes
80 WPC at 4 or 8 ohm load with KT88 tubes
Mono Operation:
100 watts at 2 or 4 ohm load with EL34 tubes
160 watts at 2 or 4 ohm load with KT88 tubes
Total Harmonic Distortion:
< 0.1% mid-frequencies at rated output
< 0.3% 20 Hz at rated output
< 0.3% 20 kHz at rated output
Hum and Noise:
> 90 dB below rated output
Damping Factor:
8 dB
Frequency Response:
∼3 dB 10 Hz to 100 kHz
Input for Rated Output:
1.2 volt RMS at 100k impedance bal/unbal
Tube Complement:
(4) 12AU7
(4) EL34 or KT88
Output tubes are not interchangeable
Power Requirement:
120 volt, 60 Hz, 250 watt
Dimensions:
17.5" x 8.287" x 15.876"
(44.5 x 21.05 x 40.33) cm
Weight:
60 lbs (27 kg)
shipping 70 lbs (32 kg)
|
