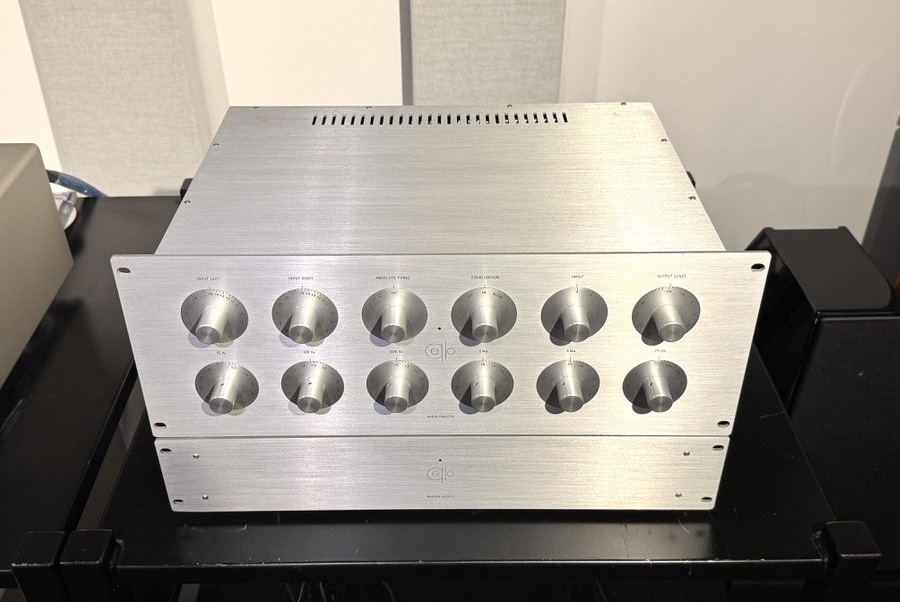

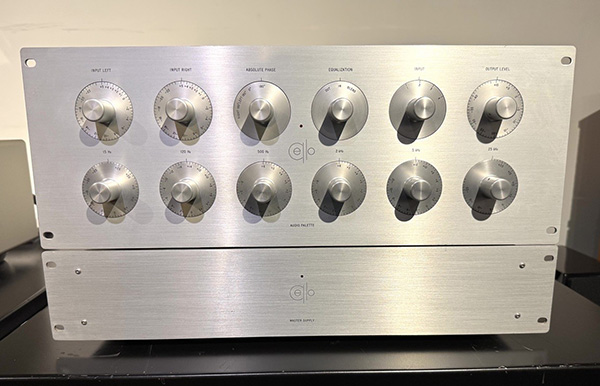

Cello Audio Palette

Precision Audio Equalizer

• Frequency Adjustment Controls:
  25 kHz control: ± 24 dB in 1.00 dB increments
  5 kHz control: ± 12 dB in 0.50 dB increments
  2 kHz control: ± 6 dB in 0.25 dB increments
  500 Hz control: ± 6 dB in 0.25 dB increments
  120 Hz control: ± 14.5 dB in 0.50 dB increments
  15 Hz control: ± 29 dB in 1.00 dB increments


• Dimensions:
  19"w / 7.4"h / 14.1"d (Audio Palette)

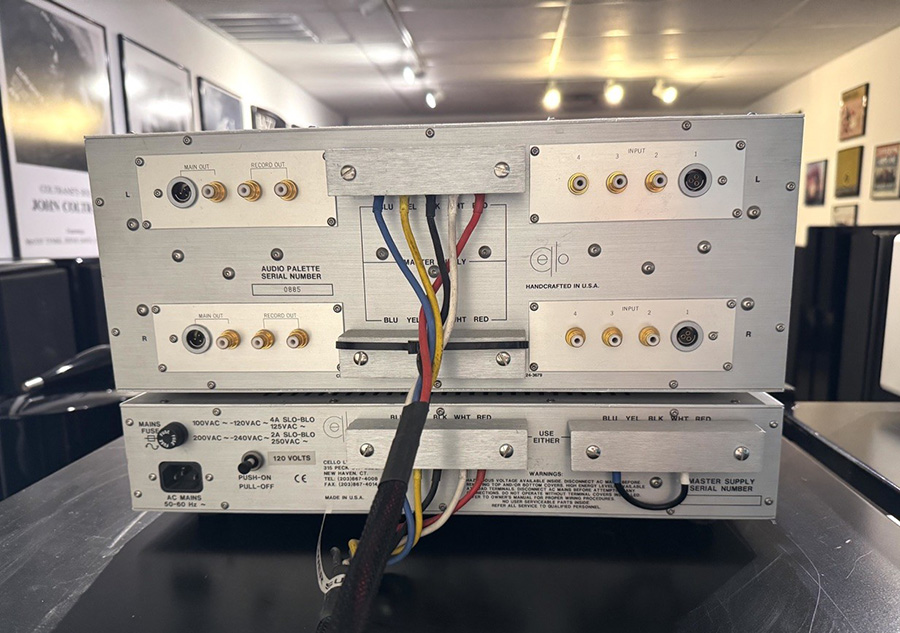

  9"w / 3.9"h / 8.5"d (Master Supply)


• Shipping Weight:
  41 lbs. (Audio Palette)
  35 lbs. (Master Supply)

The Audio Palette

Richard S. Burwen developed the concept for the Audio Palette. Burwen found that certain tone control adjustments were necessary to obtain the most natural, lifelike sound from recordings.

Cello has identified the major cause of sonic problems in recordings as the tonal balance that has been adjusted by the recording and mastering engineers in the studio. Each engineer uses a monitoring system that is unique. Because the tonal balance of each system is different, each recording is different. Engineers primarily use equalization to optimize tonal balance for the best sound on their system.

The Audio Palette advances musical realism more than any other single component. Tonal balance can be corrected from the most delicate and subtle adjustments for the best recordings, to the most extreme and dramatic adjustments for vintage material, in order to restore the vitality and life to recordings of music without sonic deterioration.

The Audio Palette is used by record companies, mastering laboratories, and also by discriminating home listeners.
