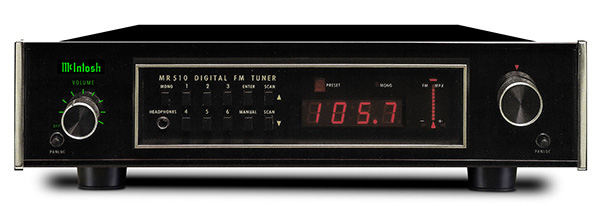

Front Panel: Glass with illuminated teal/gold nomenclature. volume with on-off switch. Push buttons: mono, station presets: 1, 2 and 3, enter, scan up, 4, 5 and 6, manual, scan down. Headphone jack. Indicator for preset station tuned. Mono indicator light. Digital frequency readout. FM MPX light. LED column for signal strength. Tuning center indicator. Tuning control. Panloc buttons.
Back Panel: Unswitched AC outlet. Power cord. Push terminals for: ground, 300 ohm FM antenna. 75 ohm FM antenna coax input. Scope outputs: vertical (TP1) and horizontal (TP2). Audio outputs: left and right 2.5V variable and 1V fixed. 15 pin remote control connector. Manual AFL switch: out or normal. Panloc mounting.
FM Section: Sensitivity 13dBF or 1.25uV across 75 ohms. Stereo 50dB quieting sensitivity 37.3dBF or 20uV across 75 ohms. Response 20Hz-15kHz ±1dB. Distortion 0.25% in stereo. Image rejection 100dB. S/N 75dB. Alternate channel selectivity 70dB. Separation 50dB@1kHz. Spurious rejection 100dB. SCA rejection 60dB.
Production: Made from February 1986 - 1990. SN: DY1001 to ?????
