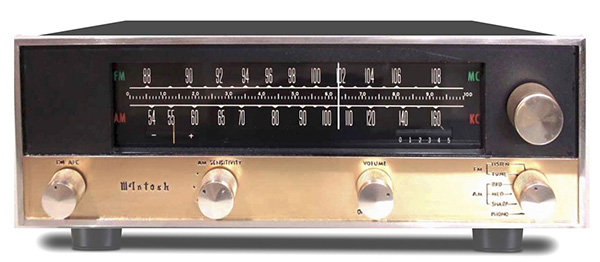

Front Panel: Anodized gold and black aluminum panel. Illuminated dial. FM light. AM light. Signal strength indicator: 0 to 5. Tuning indicator: - to +. MC light. KC light. Tuning control. FM AFC control: min to max or off. AM sensitivity switch: greatest, intermediate or minimum. Volume control with on-off switch. Selector switch: FM listen, FM tune, AM broad, AM medium, AM sharp or phono.
Back Panel: Screw terminals for FM antenna and to TV set. Ground screw. Power cord. Fuse. Unswitched AC outlet. Panel lamps switch: high or low. AM antenna switch: antenna or loop. Screw terminals for AM antenna connections: hi, lo and ground. 2 audio outputs. Multiplex output. Phono input.
FM Section: Sensitivity 3uV. Response 20Hz-20kHz within 3dB. Distortion less than 3%. Capture ratio 1 to 0.8. Four IF stages. Two limiters.
AM Section: Sensitivity 1.5uV. Selectivity bandwidth 20Hz-9kHz, 20Hz-6.5kHz and 20Hz-2kHz. Whistle filter 70dB reject at 10kHz.
Tubes: 6BK7, (2)6AB4, (2)6BA6, (4)6AU6, 6AL5, (2)6BN8, 6U8, 12AU7, 6BE6, 6BW4.
Production: 1,696 units made from June 1959 to August 1962. SN: 3K001 to 4K697
|
