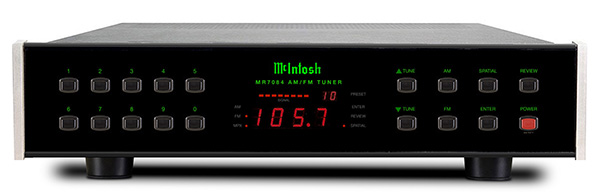

Front Panel: Glass with illuminated teal/gold nomenclature. Touch button keypad for 50 presets: 1 through 9 and 0. LED signal strength. Indicator lights: AM, FM and MPX. Digital frequency and preset readout. Mode indicator lights: enter, review, spatial. Touch buttons: tune up, AM, spatial, review, tune down, FM, enter and power with indicator. Later units had tune up, AM/FM, spatial, tune down, review, enter and power with indicator.
Back Panel: Power cord (later units had power cord receptacle). Preset clear button.
Data i/o jacks for remote control (later units also had power in and out jacks). Scope outputs: H and V. Left and right audio output: fixed and variable. Output level adjustment. 75 ohm FM antenna coax input. External AM antenna input. Built-in am ferrite loopstick.
FM Section: Sensitivity 15dBF or 1.6uV across 75 ohms. Stereo 50dB quieting. Sensitivity 39dBF or 25uV across 75 ohms. Response 20Hz-15kHz (+0 -1dB). Distortion 0.12% in stereo. Capture ratio 1.5dB. Image rejection 80dB. S/N 75dB stereo. Alternate channel selectivity 70dB. Separation 50dB. Spurious rejection 100dB.
AM Section: Sensitivity 20uV. Response 50Hz-6kHz NRSC. Distortion 0.5%. Adjacent channel selectivity 45dB. S/N 60dB. Image rejection 78dB.
Production: Began in 1995
|
