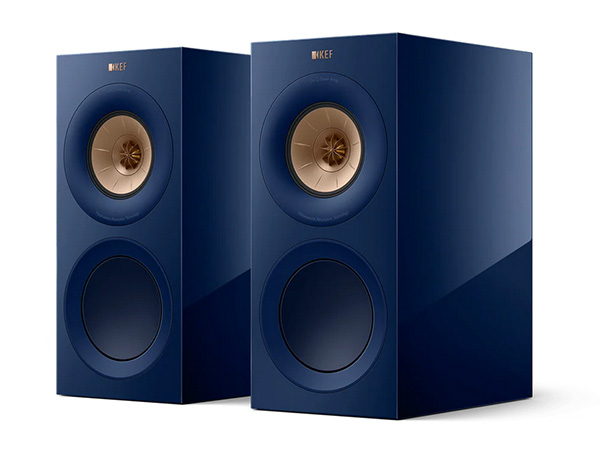

KEF R3 Meta

Three-way bookshelf speaker

R3 Meta redefines bookshelf speaker's performance. Sharing the same drivers as the range-topping R11 Meta, the R3 Meta is a true three-way design. It has a 12th generation Uni-Q® driver array with MAT™ and a powerful 6.5 inch hybrid aluminium bass driver that pushes performance to new extremes.

What is in the box

• 1 pair of R3 Meta loudspeakers

• 1 pair of microfiber grilles

• Rubber feet

• Port bungs

• User manual and warranty information

SPECIFICATIONS

Design

Three-way bass reflex

Drive Units

Uni-Q® Driver Array:
HF: 25 mm (1 in.) vented aluminium dome with MAT™ technology
MF: 125 mm (5 in.) aluminium cone
LF: 165 mm (6.5 in.) hybrid aluminium cone

Crossover Frequency

420 Hz, 2.3 kHz

Frequency Range (-6db)

38 Hz - 50 kHz

Typical In-room Bass Response (-6db)

30 Hz

Frequency Response (±3db)

58 Hz - 28 kHz

Harmonic Distortion (90dB, 1m)

<1% 73 Hz and above
<0.5% 90 Hz - 20 kHz

Maximum Output

110 dB

Amplifier Requirements

15 - 180 W

Impedance

4 ohm (min. 3.2 ohm)

Sensitivity (2.83V/1m)

87 dB

Weight

12.4 kg (27.3 lbs) each

Dimension (H X W X D) With Terminal

422 x 200 x 336 mm (16.6 x 7.9 x 13.2 in.)
